KOMETER PRODUCTS

  • Electromagnetic Flowmeter

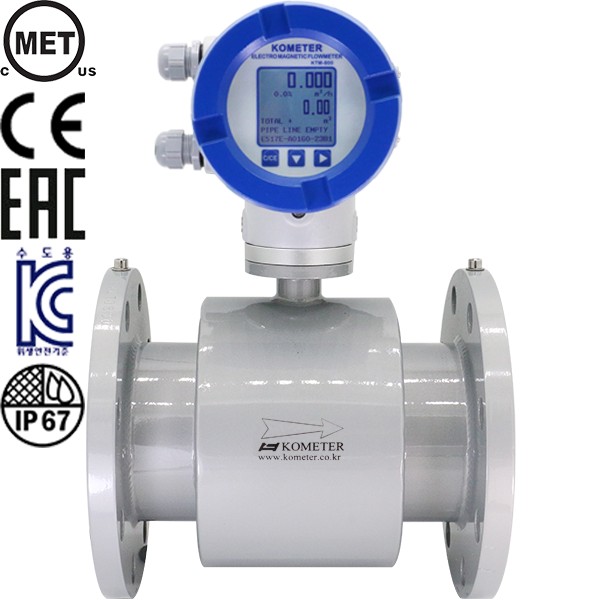

     KTM-800  is an electromagnetic flow meter specially designed for measuring the flow rate in the process where electrically conductive fluid is used. Flow meter with top-notch technology integrated is suitable for use in the field where especially high accuracy and varied self-diagnosis are required.


     This product has used PFA or PTFE liner which is highly durable to chemicals. Therefore, it can be applied to atomic energy industry, chemical and other process industry, mineral and mining industry, and water resource industry, etc. and also can be applied for fluids with low conductivity.


     KTM-800 having no driving part is excellent in durability with a long life and able to provide a much larger flow ratio (100:1). Moreover, it can be used in a place with a high level of vibration and noise. That is why it is being widely used in various industrial fields.

  • Vortex Flowmeter

     KTVP-750  is a flow meter of eddy-current type with a temperature and a pressure sensor built in. With a temperature and pressure compensating function integrated in flow measuring mechanism in the same body, it can be applied to an environment with the piping in a floating condition in various industrial sites.



     This product is most suitable for measuring flow rate of fluids, dry or wet gas, saturated or superheated steam while maintaining a high accuracy even with fluids at a high temperature.



     It is possible to supply with the tube size reduced compared with the connection size and possible to provide flange type or flangeless wafer type to cope with various piping conditions.

  • Ultrasonic Flowmeter

     GSA-250  ultrasonic flow meter for liquids having an ultrasound sensor inserted inside the piping, is a highly precise measuring instrument with a high accuracy and a high reproducibility.


     It is applicable to a wide range of piping diameter from 15A to 1000A and suitable to control and apply depending on user environment based on special design enabling at the site to not only inspect and indicate integrating flow measured but also output various kinds of signals outward.


     GSA-250 having no driving part is excellent in durability with a long life and able to provide a much larger flow ratio (100:1). Moreover, it can be used in a place with a high level of vibration and noise. And its maintenance is easy and simple.

  • Coriolis Mass Flowmeter

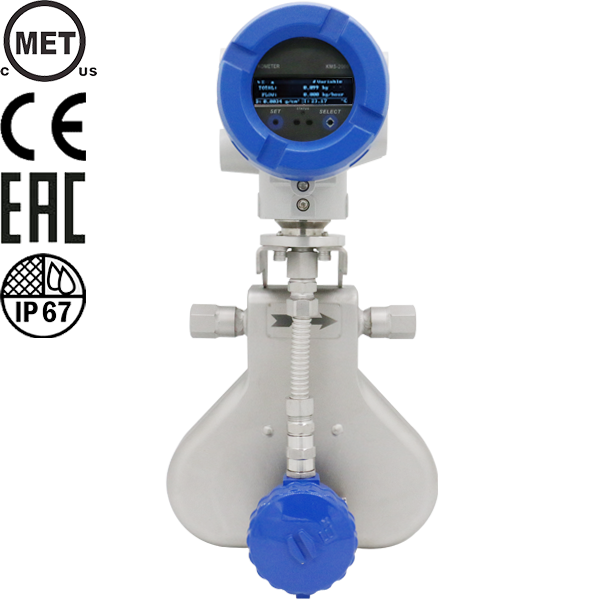

     KMS-2000  is a standard type high performance Coriolis mass flow meter to be used for process industry. The flow meter, having two curved tubes installed, provides excellent performance and high accuracy practically in all applications.



     This product enables to continuously measure mass flow, volume flow, density, and temperature even under difficult process conditions. The flow meter, multifariously approved for use in dangerous places, provides varied standard hygienic connections to be used in foods and drinks industry in addition to basic flange connection.



     KMS-2000, a Coriolis mass flow meter of lowest cost and highest efficiency while providing a high flow ratio (500:1), can be basically used in various industries with gas and liquid flows and is excellent in durability with a long life thanks to no driving part present.​

  • Thermal Mass Flowmeter



    Catalog download Manual download Drawing download
  • Displacement Flowmeter

     KTP-5000-F,   volume flow meter of roots blower type, measures flow rate by continuously running a pair of gears which are shaped to peanuts.



     Measures flow rate by repeating fluid inflow to and outflow from a fixed volume container and calculating the number of inflows and outflows per unit time and the volume of the container. Measures flow rate not in an indirect manner of using fluid speed or pressure but in a direct manner of using the volume, which has a high accuracy of measurement.


     This product is suitable for measuring the viscous fluids or non-conductive fluids as seen in the industries like petrochemical and automotive industry. As a feature of roots blower type, it is highly resistant to foreign materials within the fluid and can be provided in a flange type or a screw type to cope with various piping conditions.​



  • Turbine Flowmeter

     KTR-550-F-F   is a turbine flow meter having a mechanical section combined with electronic board displaying the flow rate, the end connection of which is finished with a flange. Because its driving part is mechanical, it can be applied for all fluids of low temperature to high temperature with relatively high accuracy and excellent reproducibility.



     KTR-550-F-F can be applied to alcohol, toluene, etc. which are not electrically conductive. And it can be used also in oil and gas, power plants, pharmaceutical and pulp & paper-making industry. However, it is recommended to not use for fluids containing sludge or highly viscous fluids. Also, it can be provided in flange type or screw (male or female) type while being able to cope with various piping conditions.



  • Differential Pressure Flowmeter

    DPE-S-PT   is a differential pressure flow meter which can check the momentary flow rate and the integrated flow rate at the site using differential pressure transmitter installed into the orifice body. Able to transmit the flow rate signal to the outside for checking, it can be controlled while interlocked with several peripheral devices.



     This product can be applied to almost all industrial sites including chemicals, oil and gas, power plants, metal processing, etc. Also, it can keep a high accuracy at a site where the temperature and pressure inside the piping is not constant, for the temperature and pressure is automatically compensated.



     This product can be applied to almost all industrial sites including chemicals, oil and gas, power plants, metal processing, etc. Also, it can keep a high accuracy at a site where the temperature and pressure inside the piping is not constant, for the temperature and pressure is automatically compensated.  ​

  • Venturi Flowmeter

     GSAV-4000  is a venturi tube flow meter, specially designed to be applied to fluids sensitive to pressure loss, whose feature is a lower pressure loss compared with orifice type or nozzle type flow meter. Able to transmit the flow rate signal to the outside for checking, it can be controlled while interlocked with several peripheral devices.



      It can be utilized at nearly most of industrial sites as it can be used for most of fluids (liquids, gases and saturated vapor) and also can be used at sites with high temperature and pressure. In applying to the piping it can be easily installed horizontally and vertically with a high degree of freedom having a small diameter up to a large diameter.



    Catalog download Manual download Drawing download
  • Pitot Tube Flowmeter

    KFM Series  is a Insertion type pitot-tube flow meter that can be used for various pipe sizes from small diameter to large diameter.



    Due to its simple structure, it is not affected by the size of pipes and ducts and can measure from a relatively small flow rate to a large flow rate.



    Since the driving part is not relatively large, there is almost no pressure loss, so it can be applied to various industrial sites.

    Catalog download Manual download Drawing download
  • Flow Monitor

    KTR-550B-PT  is a Batch Flow Controller for Flowmeters. Combined with various flowmeters, it precisely measures and directs the volume of a single fluid injection. In addition, the user interface is intuitively designed so that anyone can use it easily.



     Simple system can be constructed by adding instant flow, accumulated flow, High⦁Low Contact, and Batch functions. The design is simple and compact and can be mounted on the panel.

    Catalog download Manual download Drawing download
  • Metal Tube Rotameter

     MGE Series  is a module type metal tube area flow meter having DC4-20 mA output from a basic mechanical indicator. You can intuitively check the quantity of fluid passing the pipe with the needle of indicating part and can digitally see the momentary and integrated flow rate at the site.



     This product can be installed in any place including vertical, horizontal or descending pipeline and as it can transmit the flow rate signal to the outside for checking, it can be controlled while interlocked with several peripheral devices.



     It can be utilized at nearly most of industrial sites as it can be used for most of fluids (liquids, gases and saturated vapor) and also can be used at sites with high temperature and pressure. The body is basically made of stainless steel, however can be made of different materials.​

    Catalog download Manual download Drawing download
  • Glass Tube Rotameter

     GA-10 Series  is a glass tube area flow meter which can measure and indicate the results without any auxiliary power supply, whose feature is ability to easily read the fluid flow and momentary flow rate.



     This product is widely used at general industrial sites because it can be easily installed and repaired and it can be manufactured selectively with alarm switch and valves as option.



     When manufacturing, we process the piping connection ourselves to freely decide on the direction of fluid inflow and outflow for applying to various piping arrangements. And we can decide on the varied materials of not only the body but the float inside the product and tapered tube for applying to most of fluids (liquids and gases).​

    Catalog download Manual download Drawing download
  • Panel & Acrylic Rotameter



    Catalog download Manual download Drawing download
  • Sight Glass & Flow Switch

     SG-50 Series  is a self-coupling, directed indicator flowmeter with a specially designed interior that can measure opaque and sludge fluids.



     Since the flow detector and indicator are separated, fluid does not flow into the indicator, making it easy to observe and applicable to most fluids.



    Catalog download Manual download Drawing download
