Turbine Flowmeter
Click to enlargeIntroduction of item
KTR-550-F Series is a turbine flow meter having a mechanical section combined with electronic board displaying the flow rate, the end connection of which is finished with a flange. Because its driving part is mechanical, it can be applied for all fluids of low temperature to high temperature with relatively high accuracy and excellent reproducibility.
KTR-550-F-F can be applied to alcohol, toluene, etc. which are not electrically conductive. And it can be used also in oil and gas, power plants, pharmaceutical and pulp & paper-making industry. However, it is recommended to not use for fluids containing sludge or highly viscous fluids. Also, it can be provided in flange type or screw (male or female) type while being able to cope with various piping conditions.

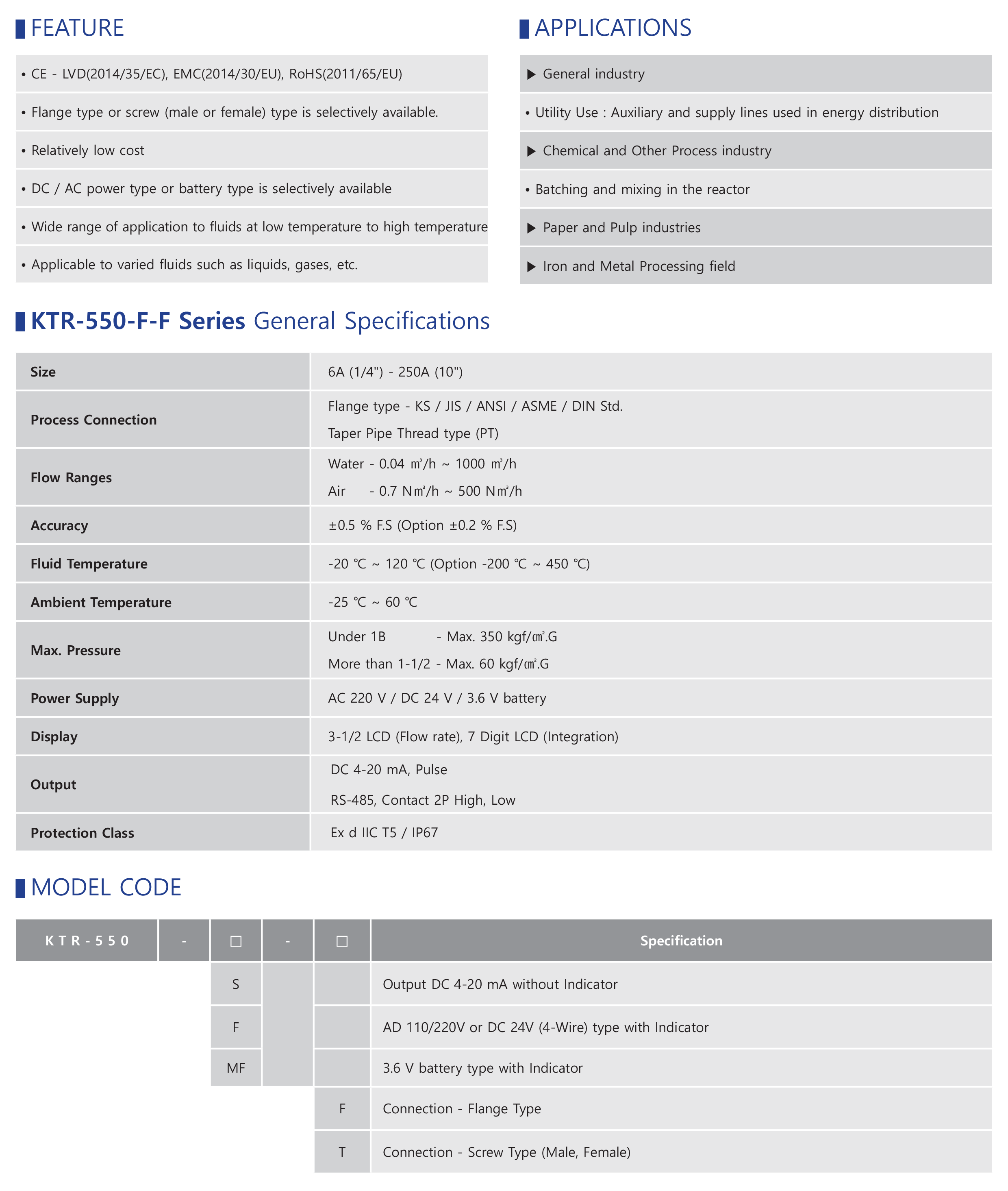

Product Features
